Spear Top Steel tubular Fence

[Return Home] [Go Back]

Spear Top Steel tubular Fence

Product Abstract:

Spear Top Steel tubular Fence specialises in home fence installations and commercial fence contracting including: steel balustrades, Colorbond fencing, chainmesh fencing, automatic gates, school security solutions, steel and brick fences, factory and industrial fences, security fences and wrought iron gates.


Product Description

Spear Top Steel tubular Fence



Materials: Q235 Color: Black And Grey Or Other

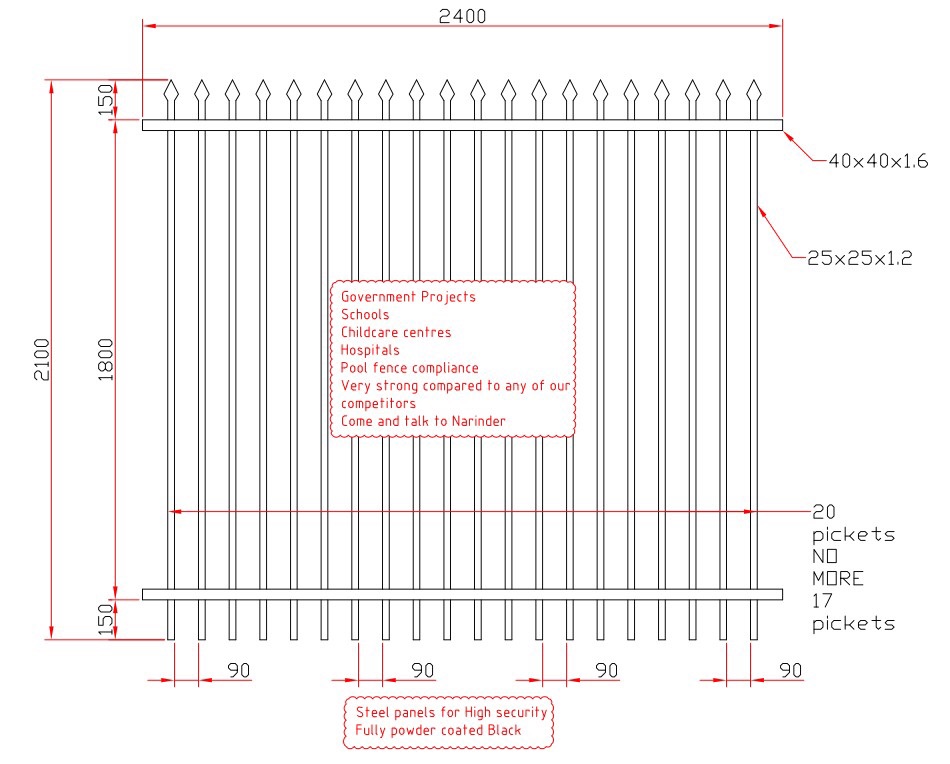

Dimensions: 1800mm X 2400mm ,2100mm X 2400mm Or Customized Salt Spray Testing: Pass
Treatment: Powder Coated ,Hot Dipped Galvanized Technical: Punch Pipes And Welding Etc
Nick Name: Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental Steel Fence Upright Pipes: 25mm X 25mm X 1.20mm
Rails: 40mm X 40mm X 1.60mm Post: 65mm X 65mm X 2.00mm X 3000mm
Popular: Powder Coated Stain Black Apllication: Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence
Weld Point: Technology: Verticals Passing Through Top And Bottom Rails And Welded To The Rails By Silicon Bronze Welding, 4 Welds Per Vertical.

Spear Top Steel tubular Fence brief introduction :



1. Material: Hot dipped Galvanized steel pipe



2. Available colors:  green,black,blue,white, yellow, gray, orange, etc.



3.Common specification:

  (1) Horizontal pipe: 40x40mm,25x25mm



  (2) Vertical pipe:16x16x1.0mm(thick.)



  (3) Spacing:110mm



   (4) Panel Size:1.5mX3.0m, 1.7mX3.0m, 1.8mX2.4m etc



Spear Top Steel tubular Fence specifications:



Rail(mm)

Picket(mm)

Center space(mm)

Post(mm)

32*32*1.2

40*40*1.2

45*45*1.2

32*32*1.0

40*40*1.0

45*45*1.0

16*16*1.0

19*19*1.0

25*25*1.0

16*16*0.8

19*19*0.8

25*25*0.8

116

124

130

116

124

130

50*50*1.5

60*60*2.0

80*80*2.0







Spear Top Steel tubular Fence applications:

 Railings, Industrial and Commercial premises, Schools and Colleges, Reservoirs,

Railways, Motorways, Residential, Private mansions
