Security spear top tubular steel fence panel

[Return Home] [Go Back]

Security spear top tubular steel fence panel

Product Abstract:

Security spear top tubular steel fence panel 1. Highest quality galvanised Steel tubing2. Fast, friendly and professional service. 3. Large range of designs and powder coating colours


Product Description

Security spear top tubular steel fence panel





1.Security spear top tubular steel fence panel introduction :



1. Material: Hot dipped Galvanized steel pipe



2. Available colors:  green,black,blue,white, yellow, gray, orange, etc.

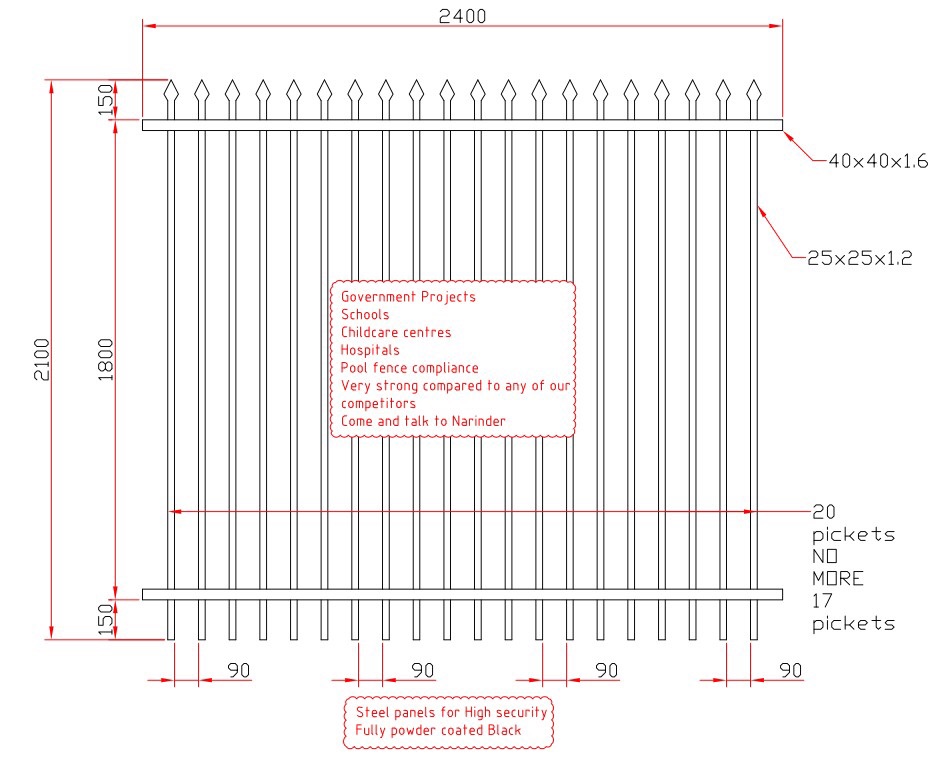

3.Common specification:

  (1) Horizontal pipe: 40x40mm,25x25mm



  (2) Vertical pipe:16x16x1.0mm(thick.)



  (3) Spacing:110mm



   (4) Panel Size:1.5mX3.0m, 1.7mX3.0m, 1.8mX2.4m etc



2. Security spear top tubular steel fence panel specifications:



Rail(mm)

Picket(mm)

Center space(mm)

Post(mm)

32*32*1.2

40*40*1.2

45*45*1.2

32*32*1.0

40*40*1.0

45*45*1.0

16*16*1.0

19*19*1.0

25*25*1.0

16*16*0.8

19*19*0.8

25*25*0.8

116

124

130

116

124

130

50*50*1.5

60*60*2.0

80*80*2.0




4.  Security spear top tubular steel fence panel applications:

 Railings, Industrial and Commercial premises, Schools and Colleges, Reservoirs, Railways,

Motorways, Residential, Private mansions.\

5.Security spear top tubular steel fence panel advantage:



1. Simple structure.Beautiful and practical.



2. Easy for transport. Simple installation in various land situations.



3. Especially suitable for fencing in mountains,slopes and bending areas.



4. Economic cost.





Security spear top tubular steel fence panel packaging and loading container:
1>There is rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels
2>There is 4 metal corners to keep the pallet more strong.
3>There is metal plate under the plastic bandage to reduce the apressure of fence panels
4>There is wooden plate at the top of fence panel which can protect the fence panels from being
crushed by other pallets.
